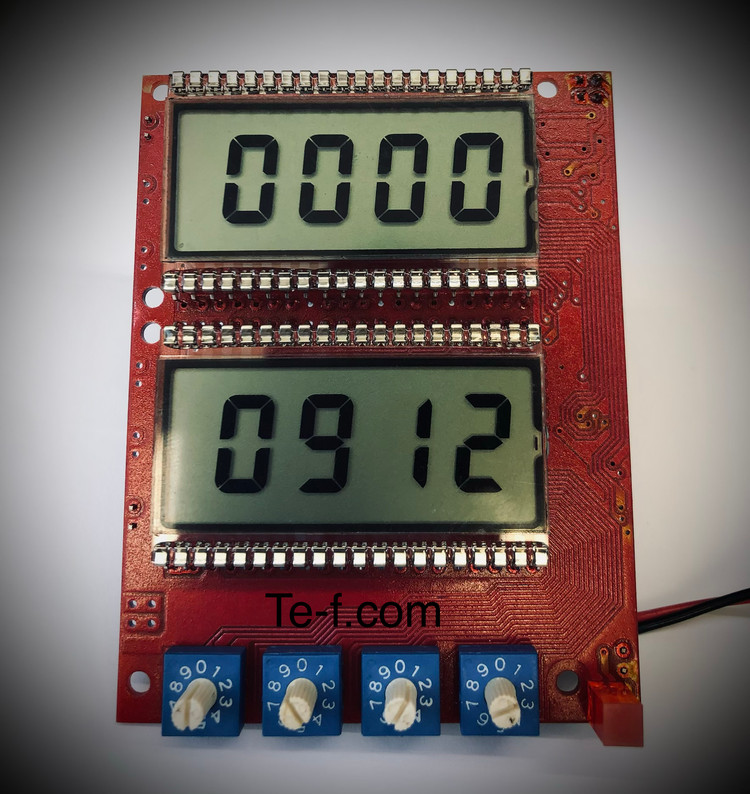

ماژول شمارنده دو کاناله با LCD و مقایسه گر قابل برنامه ریزی دیجیتال مدل TE5
( شمارنده دیجیتال دو کاناله - ماژول شمارنده دیجیتال با دو نمایشگر LCD چهار رقمی - مقایسه گر اعداد دیجیتال - ماژول شمارنده - ماژول شمارنده و مقایسه دو عدد چهار رقمی - ماژول شمارش اعداد دیجیتال چهار رقمی دو کاناله - ماژول مقایسه اعداد دو کاناله - ماژول دور شمار - ماژول تعداد شمار - ماژول شمارش دور و تعداد دو کاناله )
با سلام

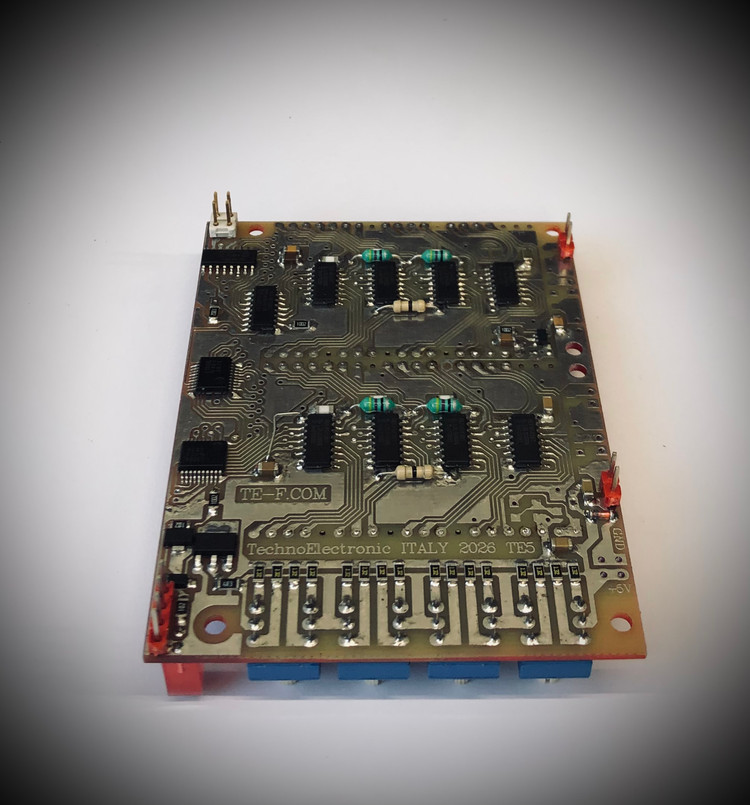

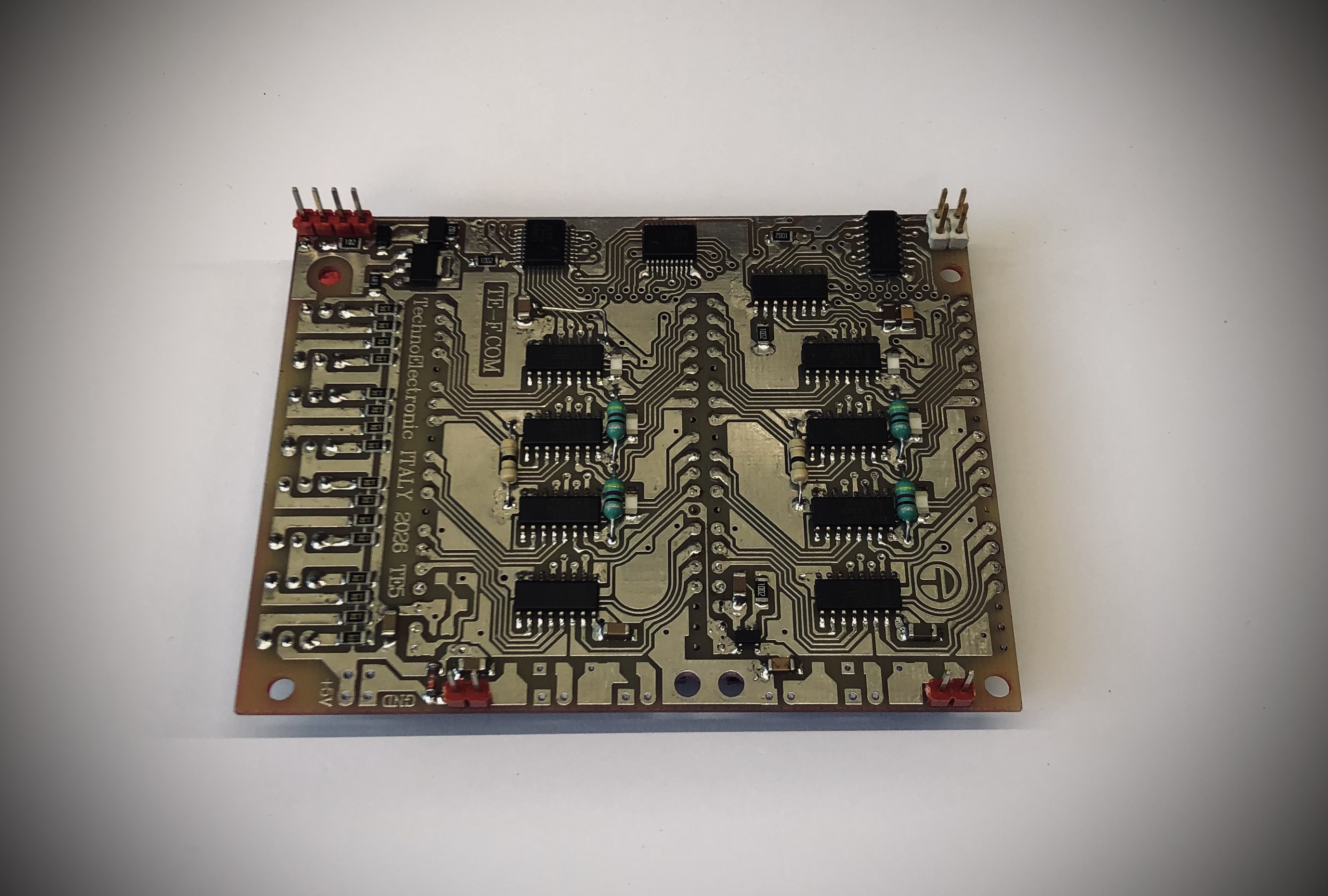

ماژول شمارنده و مقایسه گر دیجیتال دو کاناله تکنوالکترونیک مدل TE5 یک ماژول دو کاناله است با دو نمایشگر LCD چهار رقمی که به شما امکان شمارش را دور یا تعداد و فرکانس و ،... را داده و نمایش میدهد .

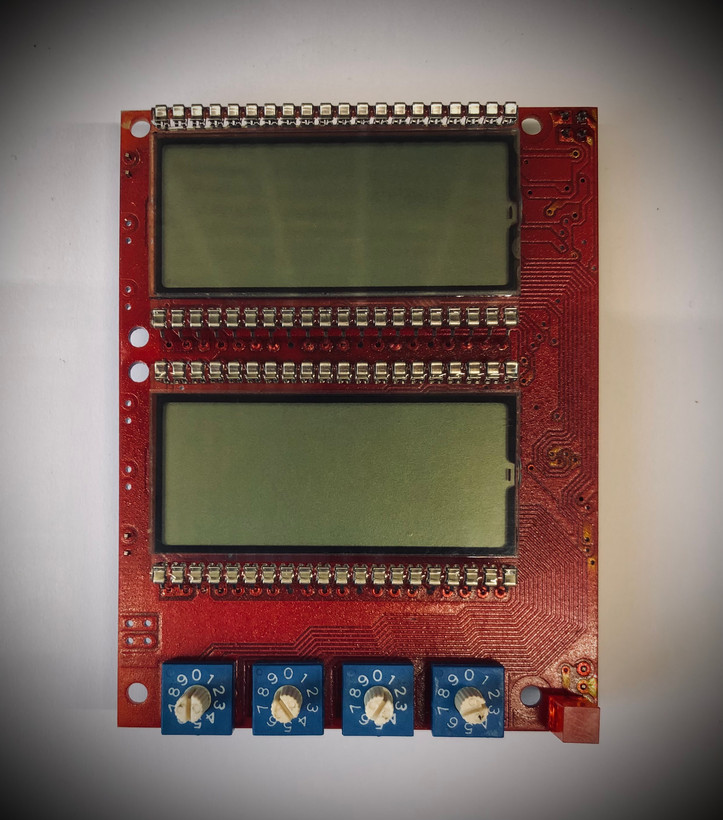

LCD بالا به هر سنسور یا میکروکنترولر یا آردینو یا سایر مدارات مربوط متصل شده و شمارش را انجام داده و LCD پایین توسط چهار کلید انکودر BCD یا کلید گردان آبی رنگ که هر کلید چرخشی مربوط به یک رقم LCD دوم می باشد اعداد را نمایش و تنظیم می کند یعنی با چرخاندن هر کلید انکودر همان اعداد بر نمایشگر دوم نمایش داده شده حال اگر دستگاه شما برای شمارش دور موتور AC یا DC طراحی شده باشد با حرکت کردن موتور مدار هم تعداد دورهای موتور را شمارش کرده و بر روی LCD چهارقمی بالا نمایش میدهد ،
زمانی که تعداد دورهای LCD بالا به عدد درج شده بر روی LCD دوم برسد چراغ LED قرمز رنگ روشن شده و دستگاه متوقف می شود
این ماژول شمارنده از اعداد 0000 تا 9999 را شمارش و نمایش میدهد
پالس ورودی به این ماژول یک پالس یا سیگنال معمولی مثبت دیجیتال یا آنالوگ از هر منبعی می تواند باشد
مدار دارای کانکتور ریست RESET برای بازنشانی و صفر کردن یا حالت دوباره است ، ولتاژ مدار ۵ ولت تا ۱۵ ولت است و دارای یک خروجی باتوان حدودی ۵۰۰ میلی آمپر است جهت راه اندازی یک یا چند رله با توان توان بالا، ولتاژ مدار هر مقدار که باشد خروجی و ولتاژ رله ها نیز به همان مقدار و نسبت تعیین شود
مدار برای تعیین یک دور مشخص یا یک فرکانس و ولتاژ و ،... قابل برنامه ریزی است و به شما این امکان را میدهد که مثلا یک دستگاه سیم پیچی بسازید که با تعیین کردن تعداد دور پیچیدن به همان مقدار سیم پیچیده شود و پس از آن دستگاه خاموش شود تا زمانی که قرقره بعدی پیچیده شود یا اینکه بخواهید به یک تعداد دقیق قطعاتی را بسته بندی و شمارش کنید با سرعت بالا و یا سایر موارد این ماژول مفید است ، که امکان مکانیزه کردن دستگاه ها را به شما خواهد داد .
باسپاس
تکنو الکترونیک
(Dual-channel digital counter - Digital counter module with two four-digit LCD displays - Digital number comparator - Counter module - Counter and comparison module of two four-digit numbers - Dual-channel four-digit digital number counting module - Dual-channel number comparison module - RPM counter module - Number of counts module - Dual-channel RPM and number counting module)
Hello

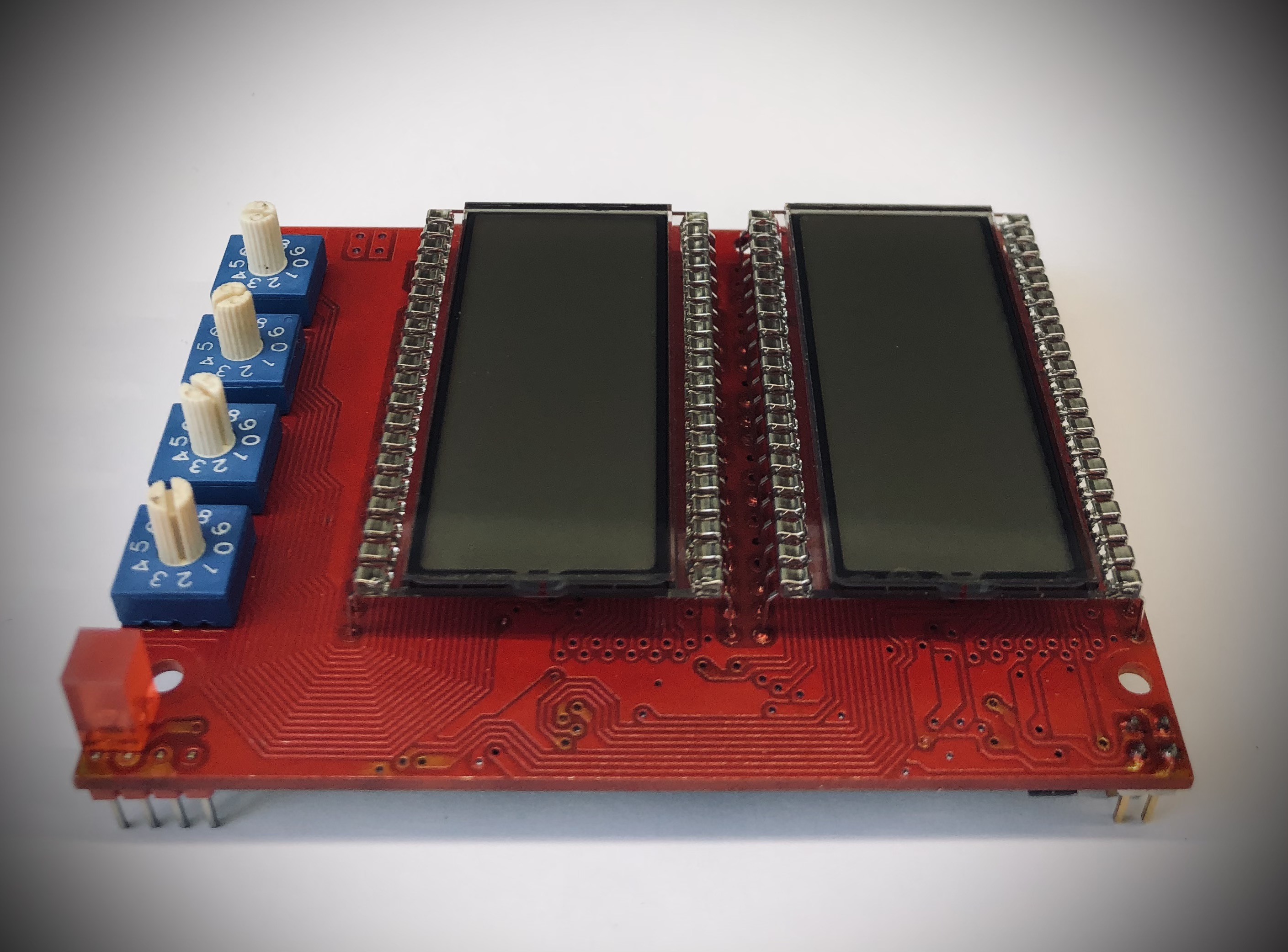

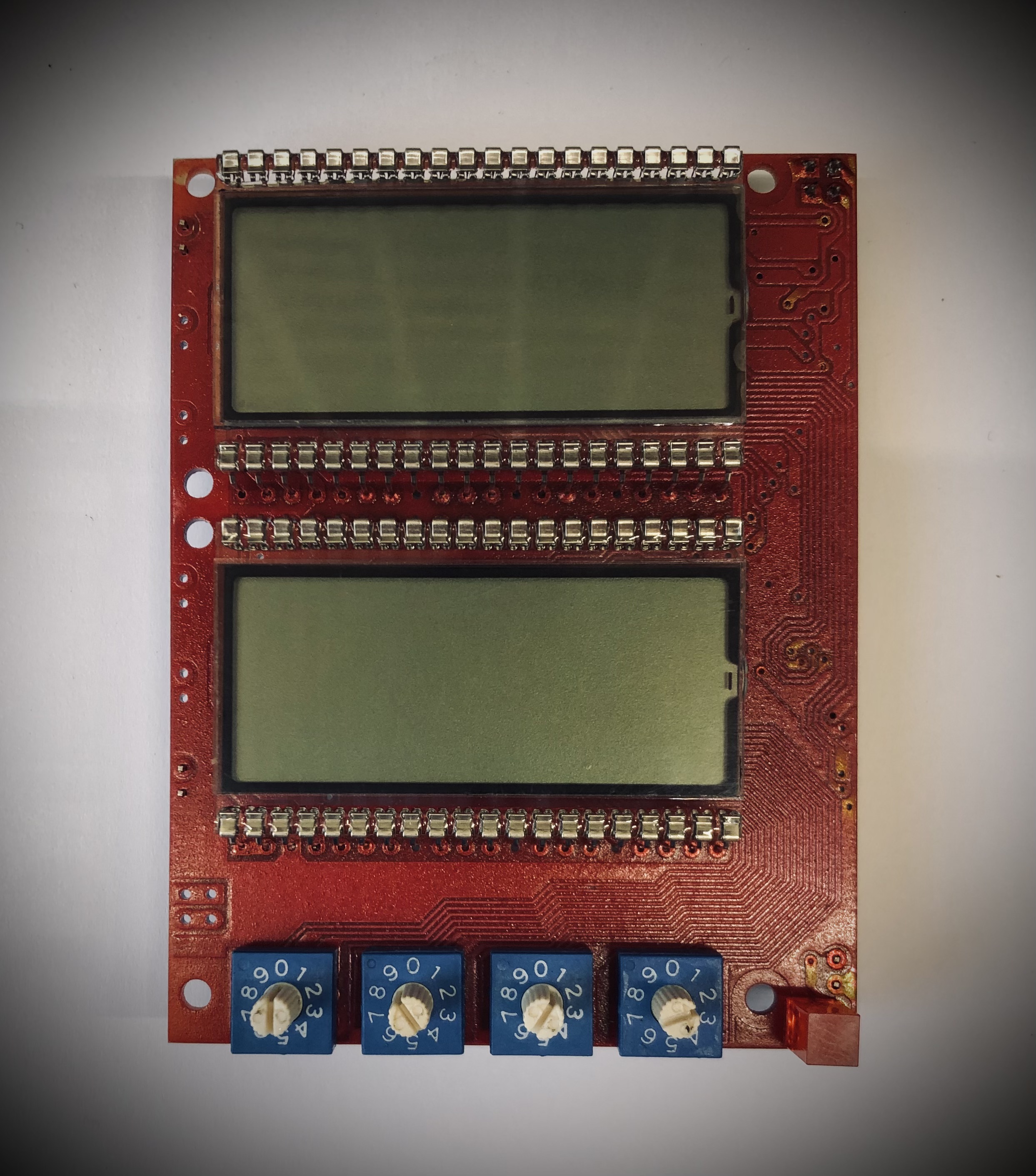

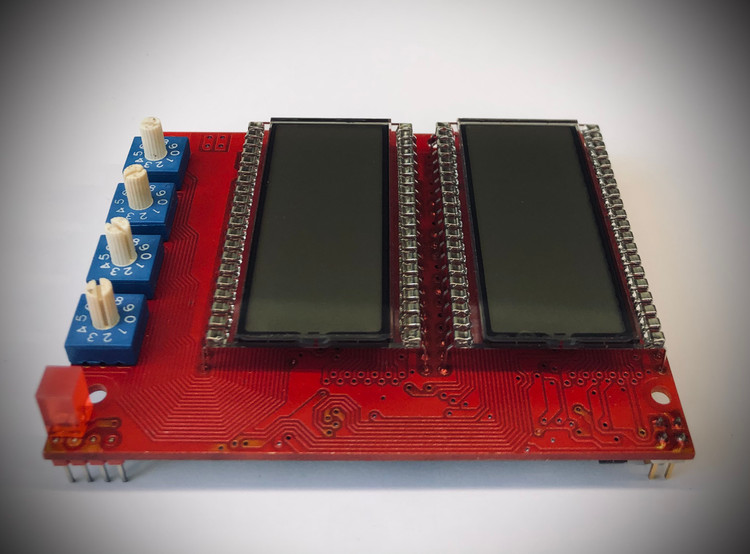

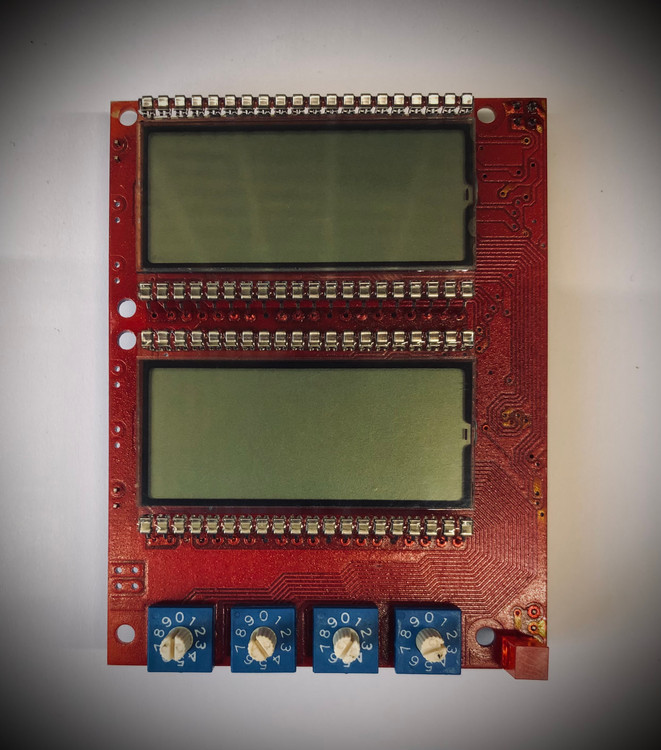

The Technoelectronics TE5 dual-channel digital counter and comparator module is a dual-channel module with two four-digit LCD displays that allows you to count and display RPM or number, frequency, and...

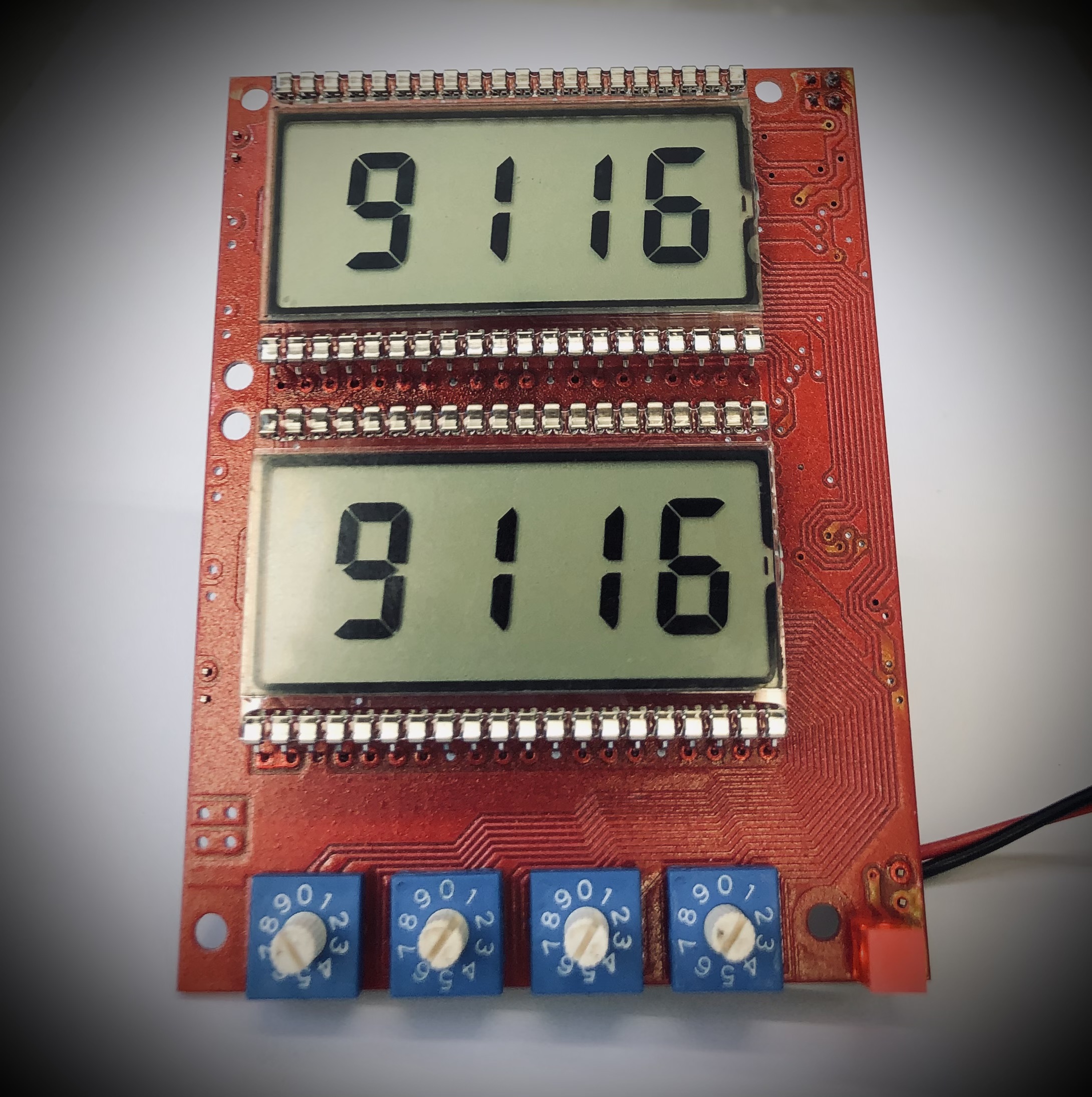

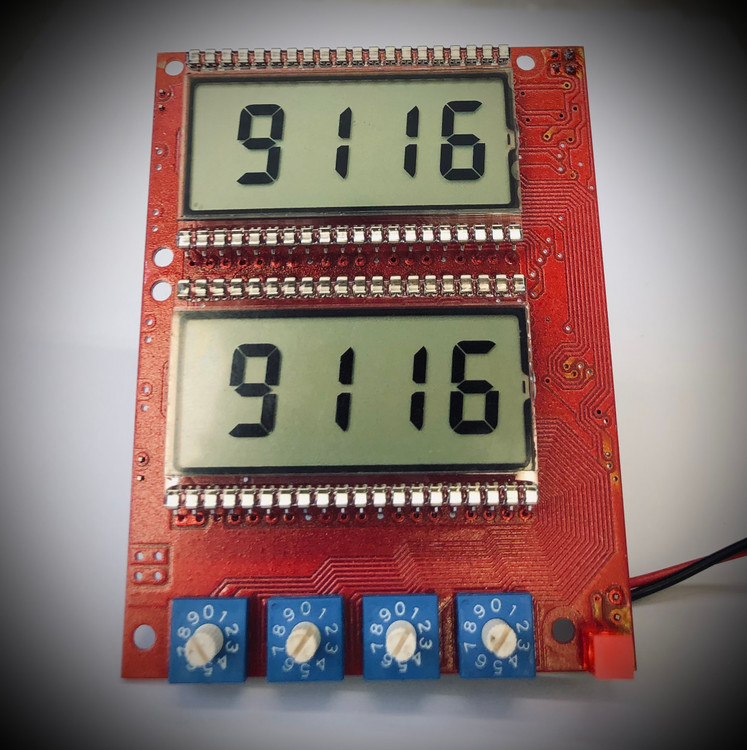

The upper LCD is connected to any sensor or microcontroller or Arduino or other related circuits and performs the counting, and the lower LCD displays and adjusts the numbers by four BCD encoder keys or blue rotary keys, each rotary key corresponding to a second LCD digit. That is, by rotating each encoder key, the same numbers are displayed on the second display. Now, if your device is designed to count the revolutions of an AC or DC motor, the circuit also counts the number of revolutions of the motor as the motor moves and displays it on the upper four-digit LCD.
When the number of revolutions of the upper LCD reaches the number entered on the second LCD, the red LED light turns on and the device stops.
This counter module counts and displays the numbers from 0000 to 9999.
The input pulse to this module can be a pulse or a normal positive digital or analog signal from any source.
The circuit has a RESET connector for resetting and zeroing or resetting. The circuit voltage is 5 volts to 15 volts and has an output with a certain power. 500 mA is to start one or more relays with high power, whatever the circuit voltage, the output and voltage of the relays are also determined by the same value and ratio
The circuit is programmable to determine a specific turn or a frequency and voltage, etc. and allows you to, for example, build a winding device that wraps the same amount of wire by determining the number of turns and then the device turns off until the next spool is wound or if you want to pack and count parts in an accurate number at high speed or other cases, this module is useful, which will allow you to mechanize the devices.
Thanks
Techno Electronics
